Rover UC

Undercover Metal Detector

The 3D metal detectors of the Rover Series are not only simple metal detectors with audio output. Furthermore it is possible to create excellent three-dimensional graphics of the scanned underground. Due to the approved Single-Sensor-Technology those detectors are optimally applicable for detecting hidden objects.

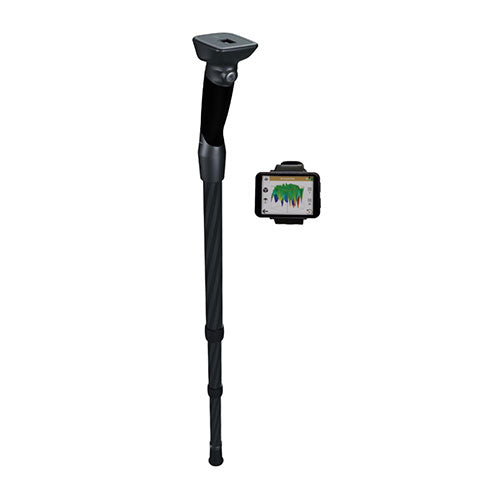

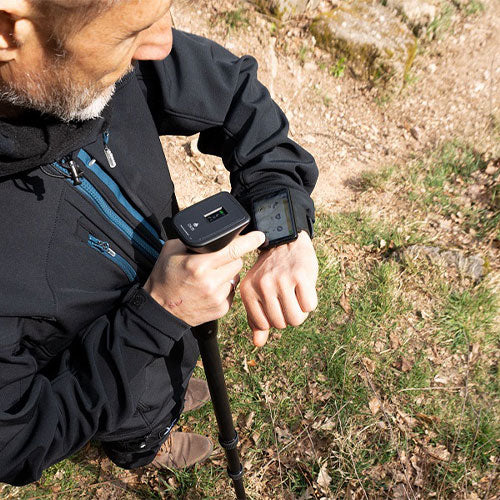

Rover UC is a new generation of metal detecting technology that allows to introduce a new deep-seeking detector – smaller, lighter and more compact than previously built detectors. The unit is controlled via smartphone, hence does not require a computer to see buried items.

  • Powerful technology
    The Rover UC is based on the proven, reliable and powerful technology of the Rover series, whose details have been optimized and improved.
  • Disguised as a trekking pole

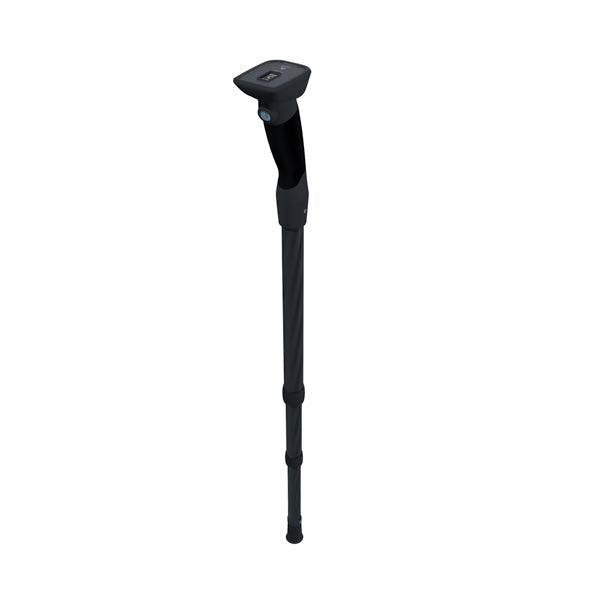

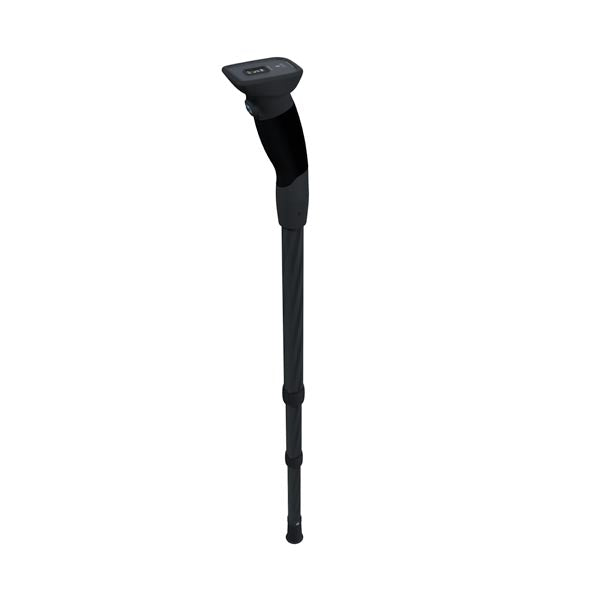

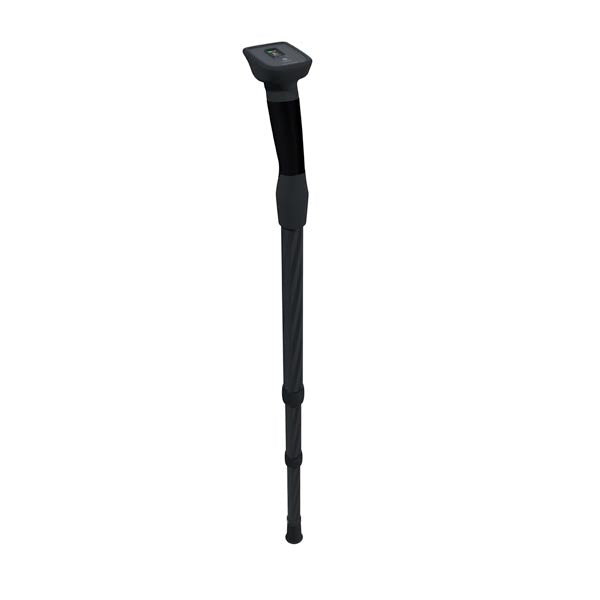

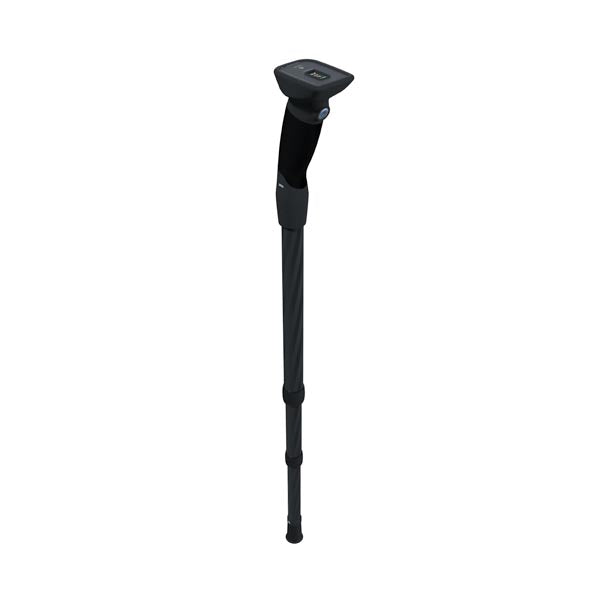

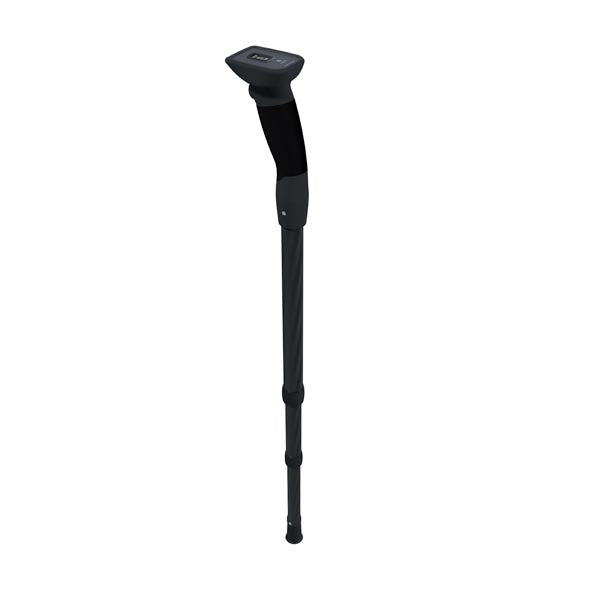

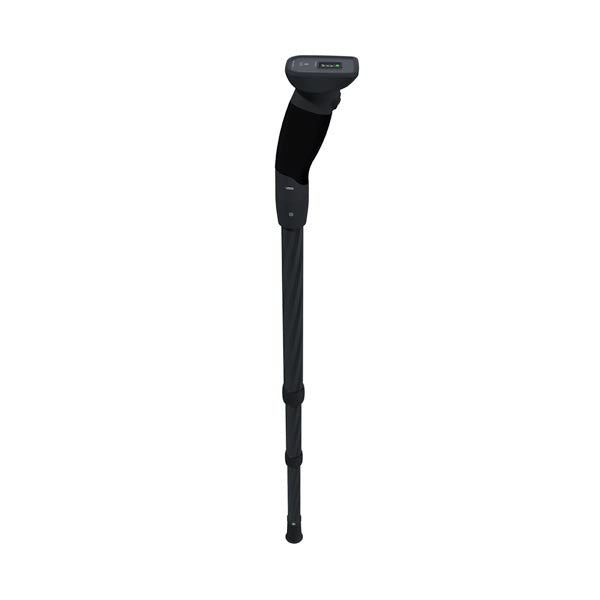

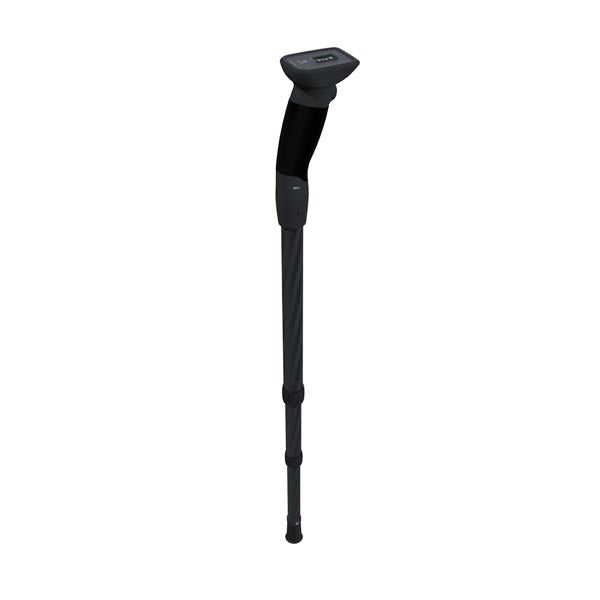

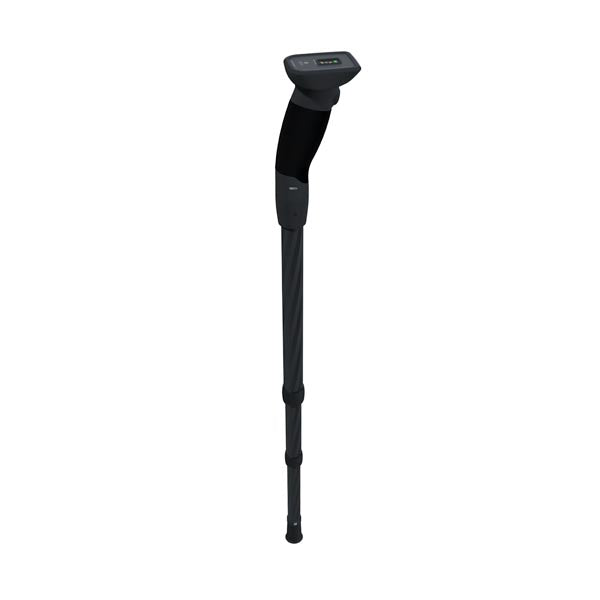

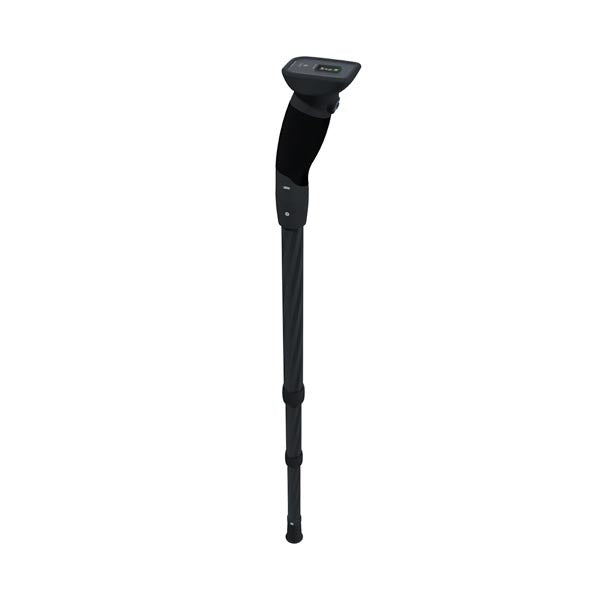

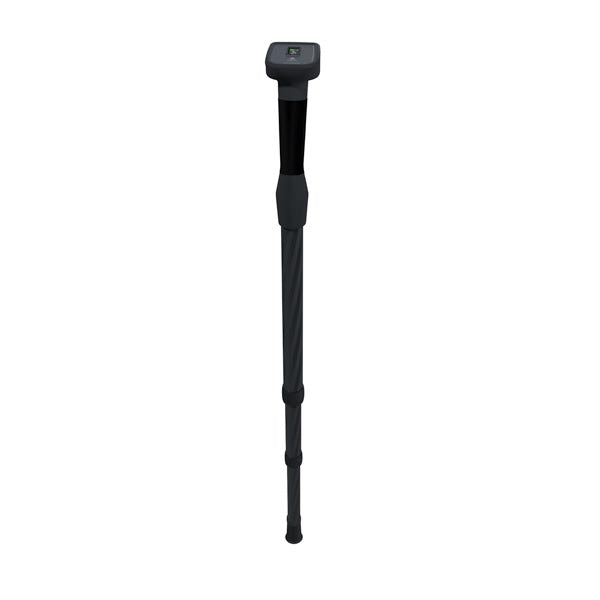

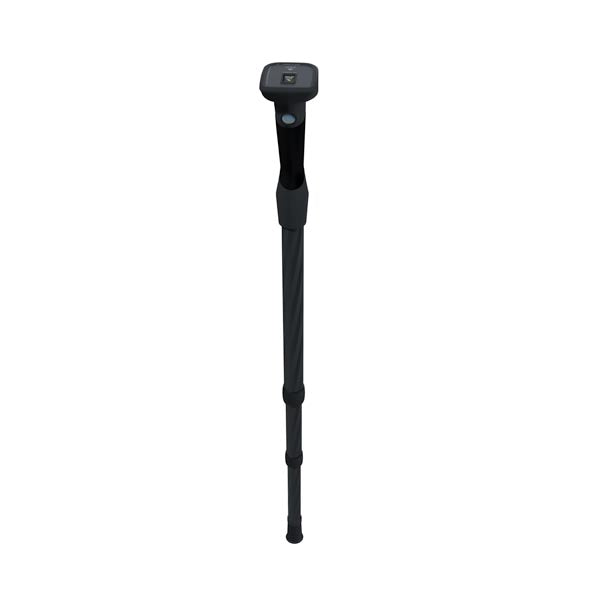

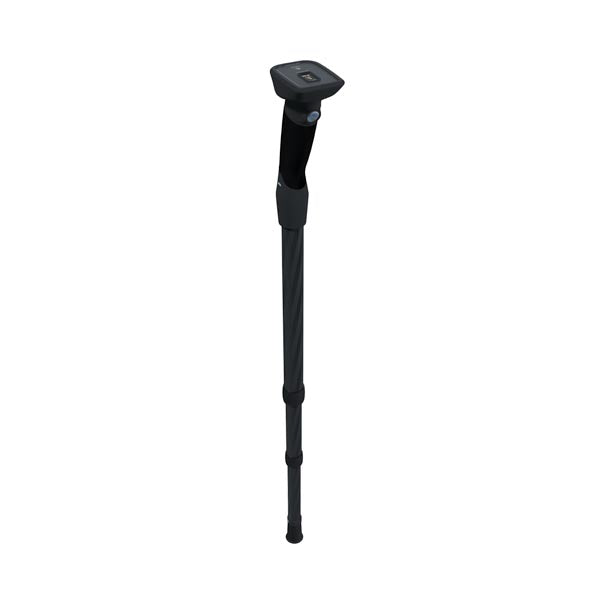

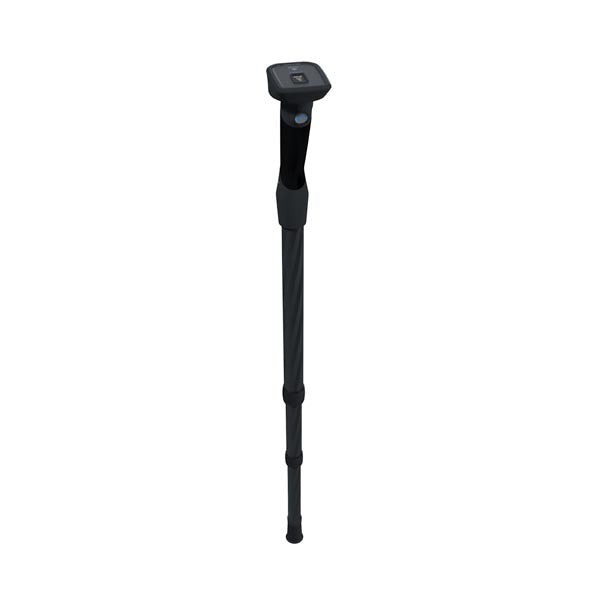

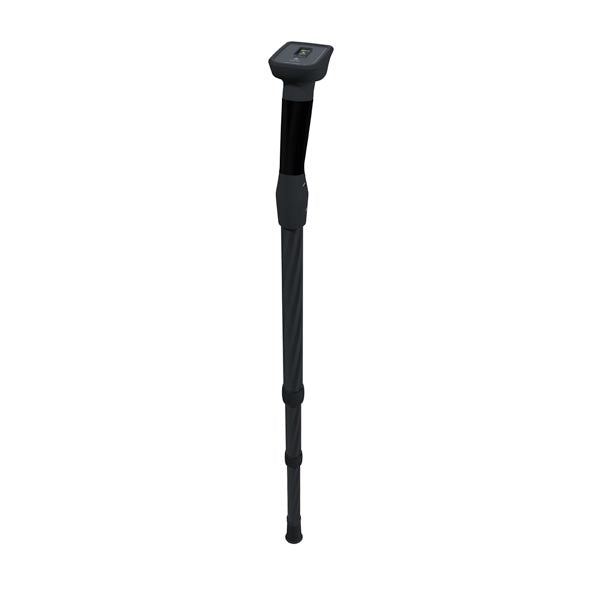

    The metal detector Rover UC is camouflaged as a trekking pole and allows applications that were hardly feasible with conventional detectors.
  • Smartphone with 3D software

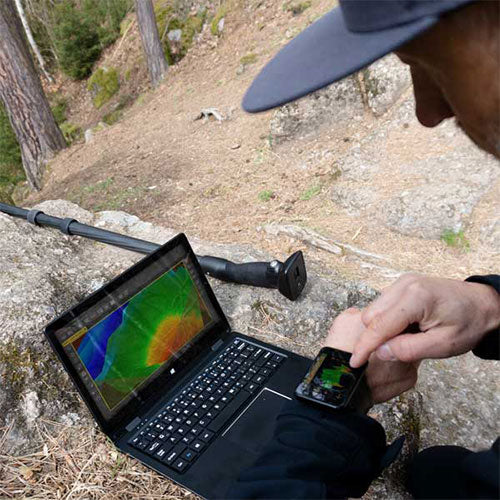

    The 3D software for the analysis of the measurement data has been completely integrated into an Android smartphone.

Features

  • GPS (disengageable)
    GPS (disengageable)
  • 3D visualization
    3D visualization
  • Multilingual operation
    Multilingual operation
  • Wireless technology
    Wireless technology
  • 3D ground scan
    3D ground scan
  • GST / EMSR
    GST / EMSR
  • Exchangeable probes
    Exchangeable probes
  • Color display / Touchscreen
    Color display / Touchscreen
  • Live Sound
    Live Sound
  • Height adjustment
    Height adjustment

Topics

  • Treasure Hunting
    Treasure Hunting
  • Militaria Detection
    Militaria Detection
  • Cavity Detection
    Cavity Detection

Computer, minimum requirements

  • CD-ROM drive: minimum 4x
  • Interface (Data transmission): USB
  • Free disk space: minimum 50 MB
  • Working memory (RAM): minimum 256 MB
  • Graphic card: minimum 128 MB, OpenGL-compatible
  • Processor: minimum 1.2 GHz
  • Operating system: Windows Vista, Windows 7, Windows 8, Windows 10

Data transmission

  • Technology: Bluetooth
  • Frequency: 2.4 – 2.4835 GHz
  • Maximum Transfer Rate: 1 Mbps
  • Receiving Sensitivity: –85 dBm
  • Maximum Range: approx. 10 m

Telescopic probe

  • Dimensions (H x W x D): 730 – 1400 x 40 x 60 mm
  • Weight: about 0.65 kg
  • Operating temperature: –10°C – 50°C
  • Storage temperature: –20°C – 60°C
  • Waterproof: No
  • Processor: Dual-system, Atmel AtMega CPU, 20 MHz
  • Voltage: 2x AA Primary battery (1.5 V, 2600 mAh) or 2x Rechargeable NiMh (1.2 V, 2600 mAh)
  • Operating time: about 10 h
  • Air humidity: 5% – 75%
  • Sensor technology: SCMI-15-D
  • Technology: GST / EMSR
  • Interconnect: Bluetooth, Class 2
The technical data are average values. Minor deviations are possible during operation.
  • Rover UC Manual EN

    • File name: RoverUC_Manual_EN.pdf
    • File size: 2.15 MB
    Download
  • Rover UC Manual DE

    • File name: RoverUC_Manual_DE.pdf
    • File size: 2.18 MB
    Download
  • Rover UC Manual FR

    • File name: RoverUC_Manual_FR.pdf
    • File size: 2.19 MB
    Download
  • Rover UC Manual ES

    • File name: RoverUC_Manual_ES.pdf
    • File size: 1.02 MB
    Download
  • Rover UC EN v3

    • File name: RoverUC_EN_v3.pdf
    • File size: 1.74 MB
    Download
  • Rover UC DE v3

    • File name: RoverUC_DE_v3.pdf
    • File size: 1.66 MB
    Download
  • Visualizer 3D Manual EN

    • File name: Visualizer3D_Manual_EN.pdf
    • File size: 1.77 MB
    Download
  • Visualizer 3D Manual DE

    • File name: Visualizer3D_Manual_DE.pdf
    • File size: 1.8 MB
    Download
  • Visualizer 3D Manual FR

    • File name: Visualizer3D_Manual_FR.pdf
    • File size: 1.19 MB
    Download
  • Visualizer 3D Manual ES

    • File name: Visualizer3D_Manual_ES.pdf
    • File size: 1.05 MB
    Download
  • Visualizer 3D Manual AR

    • File name: Visualizer3D_Manual_AR.pdf
    • File size: 1.35 MB
    Download
  • Visualizer 3D Manual TR

    • File name: Visualizer3D_Manual_TR.pdf
    • File size: 481 kB
    Download
  • Visualizer 3D Manual GR

    • File name: Visualizer3D_Manual_GR.pdf
    • File size: 1.93 MB
    Download
  • Visualizer 3D Demo

    • File name: Visualizer3D_Demo.exe
    • File size: 3.82 MB
    Download

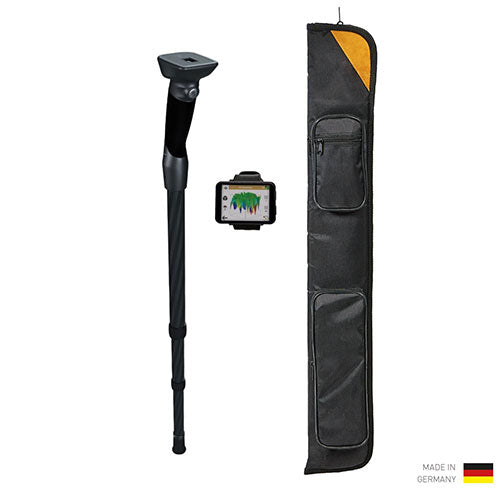

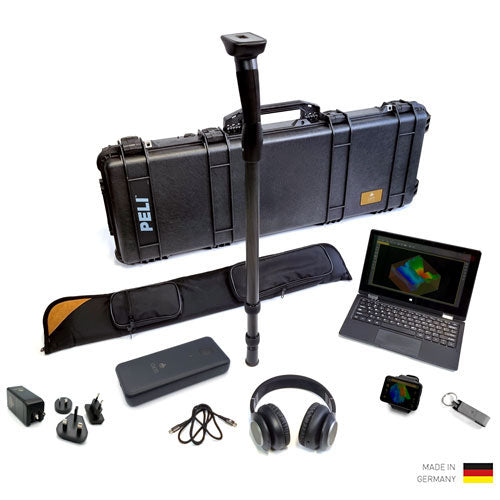

Below you will find the complete scope of delivery including all optionally available accessories.
n ≙ n times included, ≙ not included, ≙ optional epquipment
User’s manual1
3D Software (“Visualizer 3D”)1
AA battery 1.5 V2
Instruction video (DVD)1
Wireless Telescopic Probe1
Controller (smartphone with headphones, USB cable and charger)1
Carrying Bag1
Shipping carton1
Windows Tablet PC
