Metal Detector with Live Scan Detection OKM Fusion Professional Plus
- Compact: Detector for scans in vertical and horizontal orientation - supporting graphical 3D measurements, acoustic magnetic field measurements and instant live images
- Detection depth: With this technology customers found objects down to 21 m (69 ft) deep
- Use cases: Treasure hunting, cavity detection, archaology
- Operating modes: 3D Ground Scan, Live Sound (Magnetometer), Live Stream
- Detectable objects: Treasure chests, cavities, tunnels
plus VAT, shipping and fees
3D Visualization
3D Ground Scan
SRIS Search Coil
Live Stream
GST / EMSR
Height Adjustment
Color Display / Touchscreen
Wireless Technology
Multilingual Operation
Rechargeable High-Capacity Battery
OKM's Fusion Professional Plus is a 3D ground scanner with integrated inductive search coil. The multi-functional detector supports treasure hunters, archaeologists as well as engineers with graphical 3D measurements, acoustic magnetic field measurements and instant live images.
How to Use the 3D Ground Scanner Fusion Professional Plus
The advanced Professional Plus edition can be used in vertical and horizontal orientation and supports the operating modes 3D Ground Scan, Live Sound and Live Scan:
3D Ground Scan
3D Ground Scan allows treasure hunters to visualize and analyze detected structures and objects in three-dimensional scan images. These representations enable detectorists to determine the position, size and depth of potential treasures and hidden tunnels or burial chambers.
Live Sound (Magnetometer)
Live Sound (Magnetometer) allows to detect metal objects near the surface in real time. Treasure hunters and detectorists use this mode to clear the scan field before performing a more detailed 3D Ground Scan.
Live Scan (Multi-Sensor)
Live Scan with horizontal probe provides immediate visual feedback of the scanned area as color-coded 2D representation.
Live Scan (Ultrasound)
Live Scan with vertical probe provides immediate visual feedback of the scanned area in representations similar to ultrasound images.
Visualize Treasures Fast and Easily with Live Scan
The operating mode Live Scan is only available with Fusion Professional Plus. It can be performed with the Fusion probe in vertical or horizontal orientation. Depending on the probe orientation, the live images are visualized as 2D representation (horizontal probe) or similar to ultrasound representations (vertical probe).

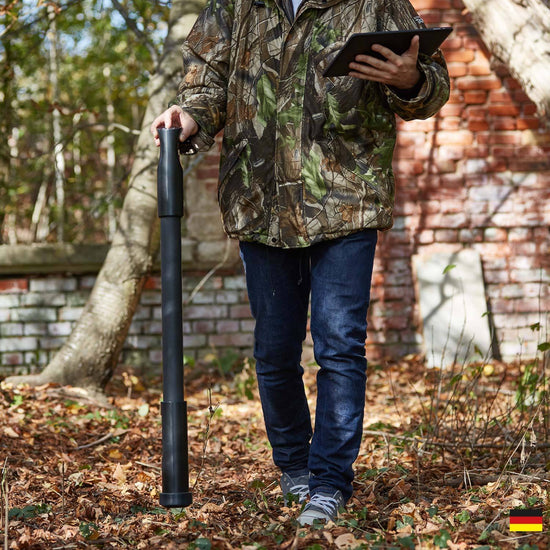

See Into the Ground with 'Ultrasound' Live Scan (vertical)
Scanning the target area with the probe in vertical orientation allows treasure hunters to search also in narrow galleries and tunnels. Moreover, in Live Scan mode you can move the probe back and forth without following any scan patterns. Detected anomalies in the underground are immediately visualized in greenish colors and remind of ultrasound images.
Scan Large Areas Faster with Multi-Sensor Live Scan (horizontal)
The Fusion Professional Plus probe is equipped with OKM's Multi-Sensor technology. Thus, using the probe in horizontal orientation allows detectorists to scan the target area even faster. The Visualizer 3D Studio Software will immediately generate a color-coded 2D representation of hidden objects and structures while scanning.
Detect Larger Objects and Structures with 3D Ground Scan
3D Ground Scan visualizes underground structures and objects in color-coded 3D representations. Moreover, the OKM detection technology allows to detect target objects in depths down to 69 ft (21 m).
High-Resolution Scans with 3D Ground Scan (vertical)

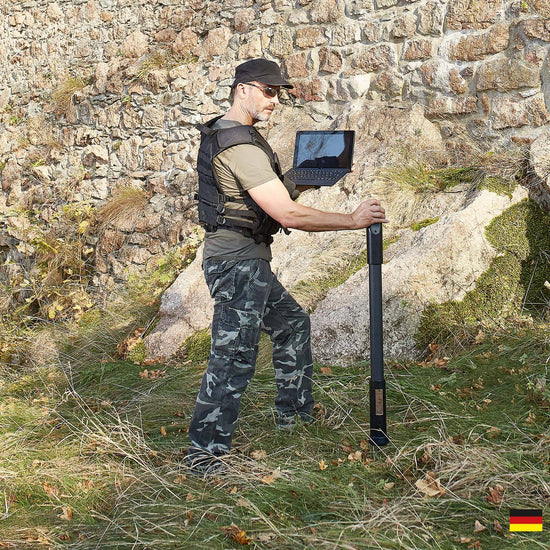

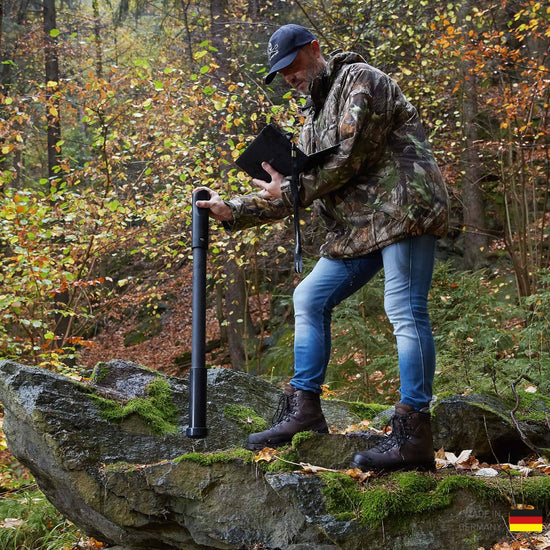

When using the detector in vertical orientation, you carry the probe in one hand and the Tablet in the other. Additionally, the integrated inductive search coil can be enabled.
Multi-Sensor Scans with 3D Ground Scan (horizontal)
3D Ground Scan with horizontal probe is only available with Fusion Professional Plus

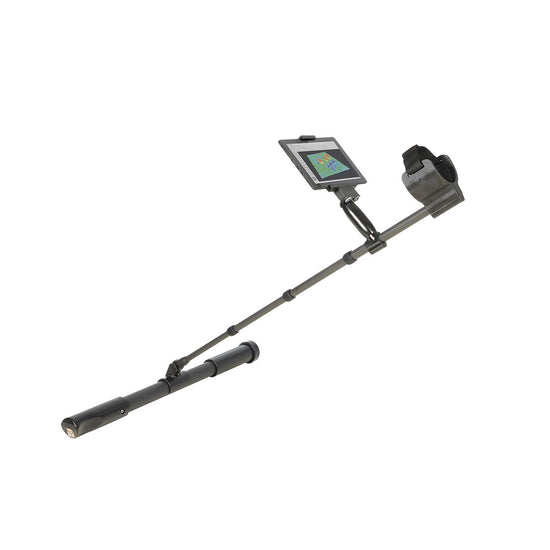

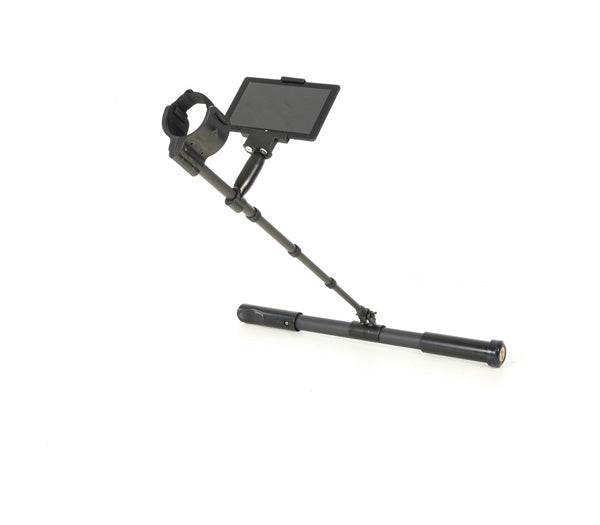

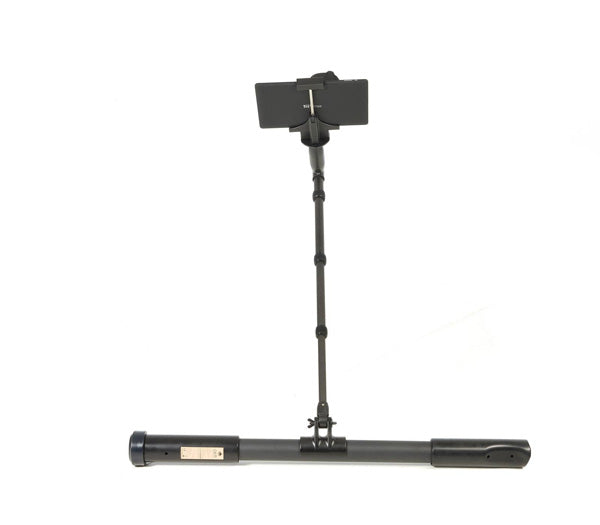

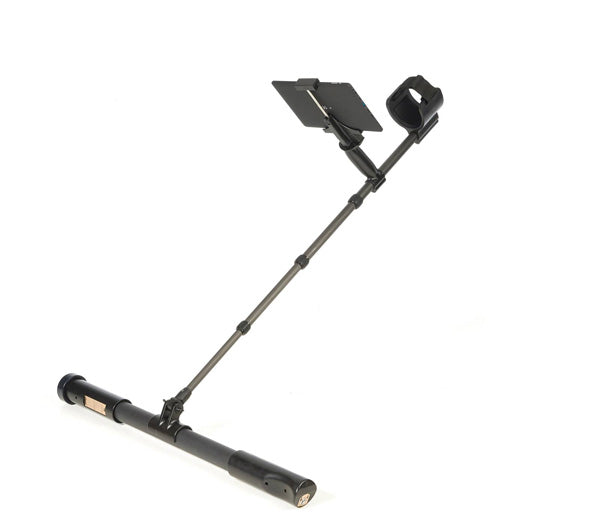

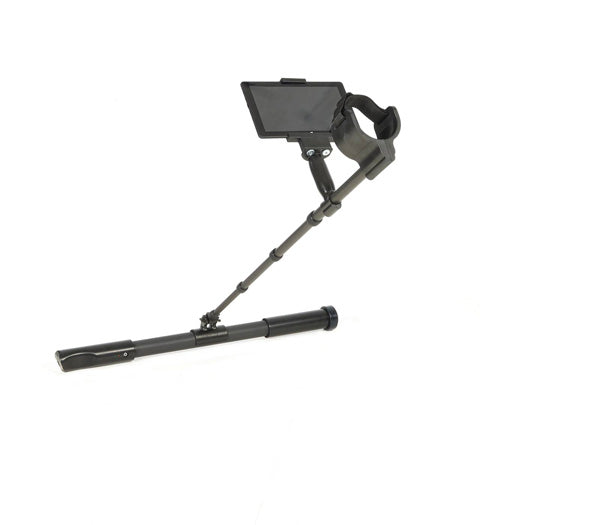

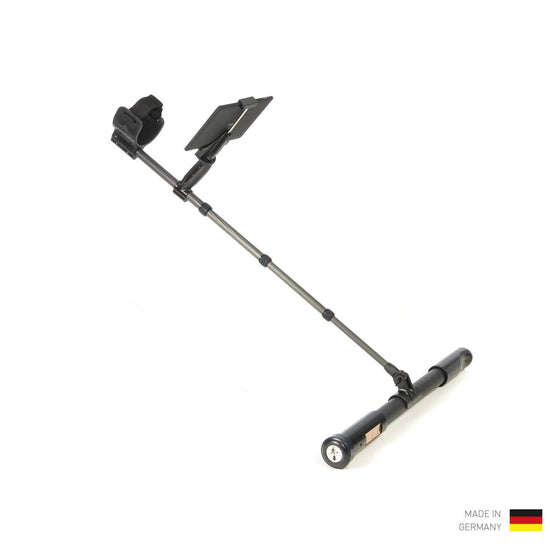

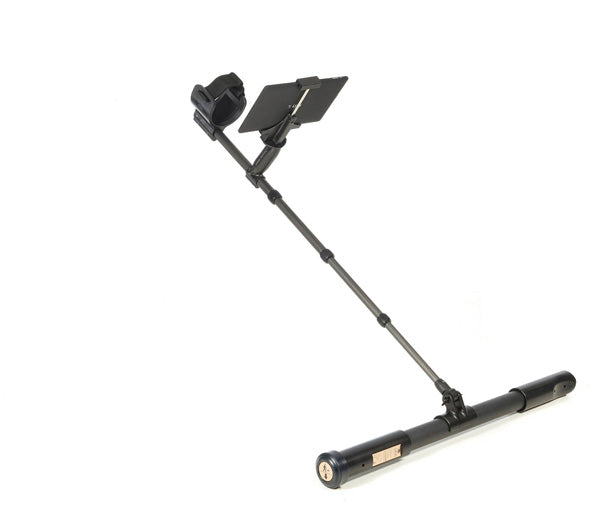

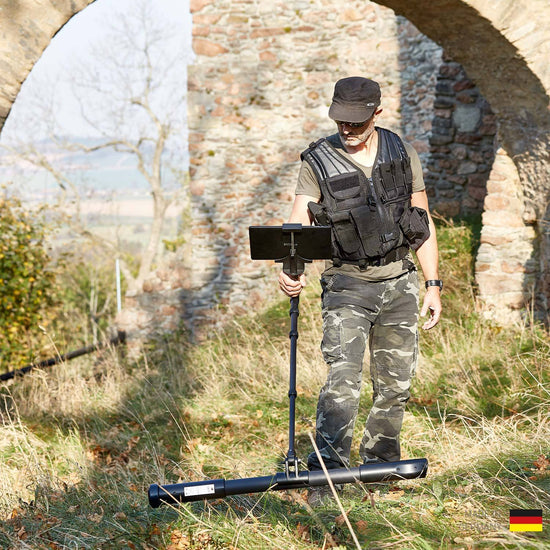

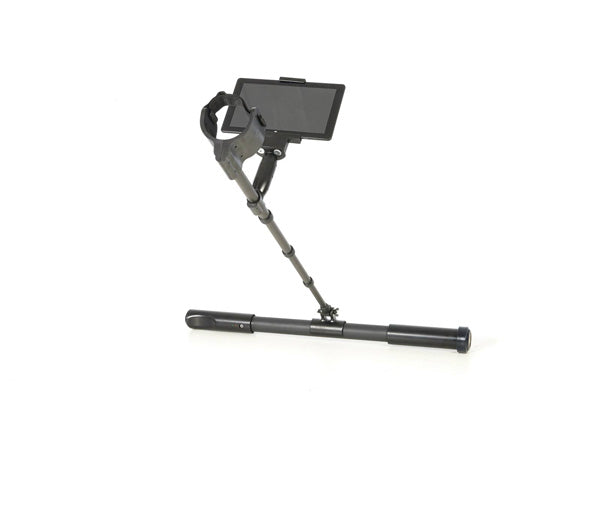

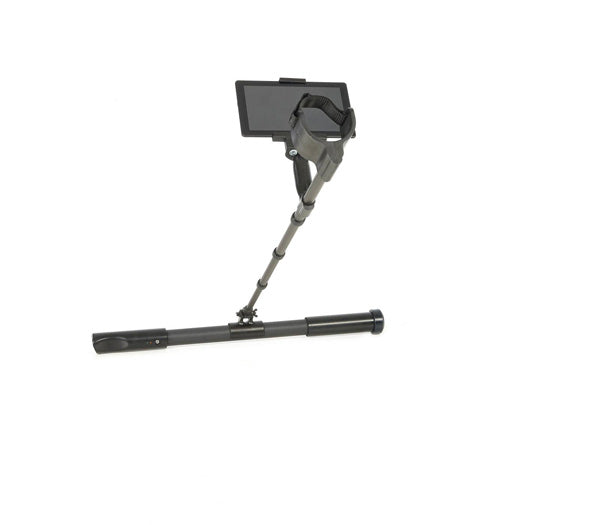

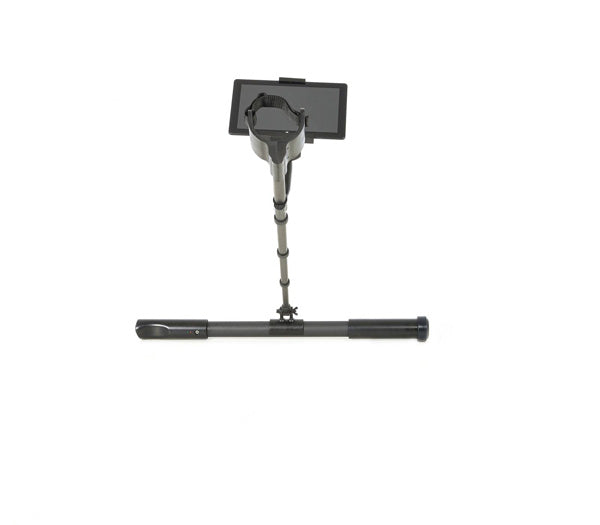

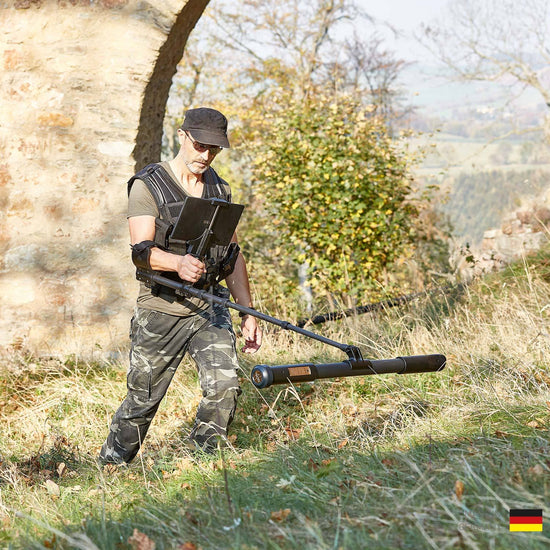

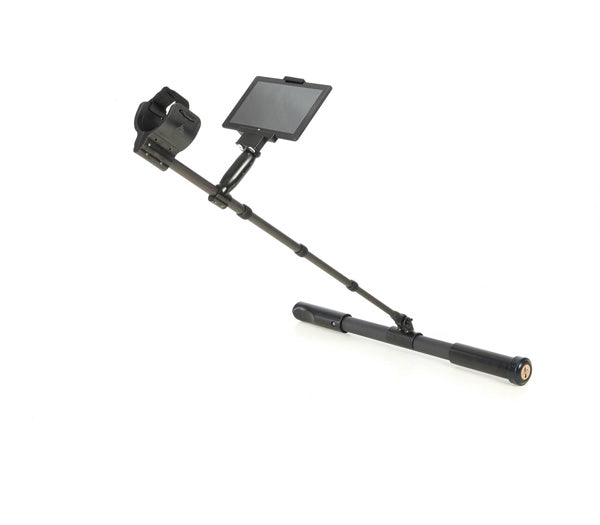

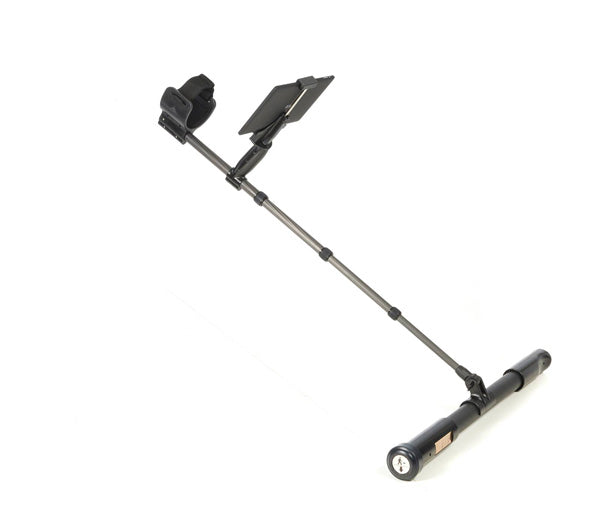

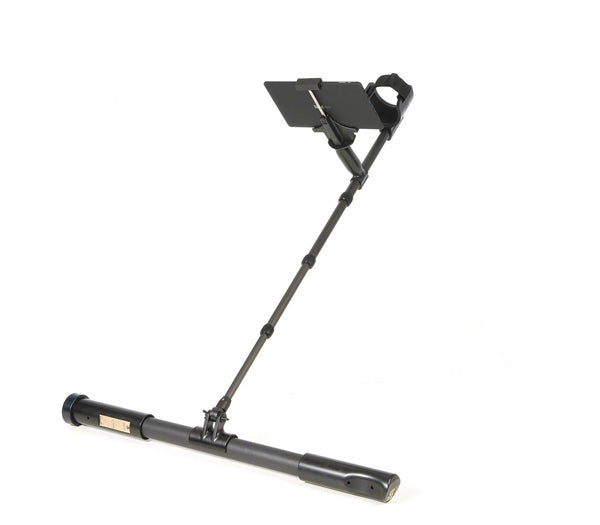

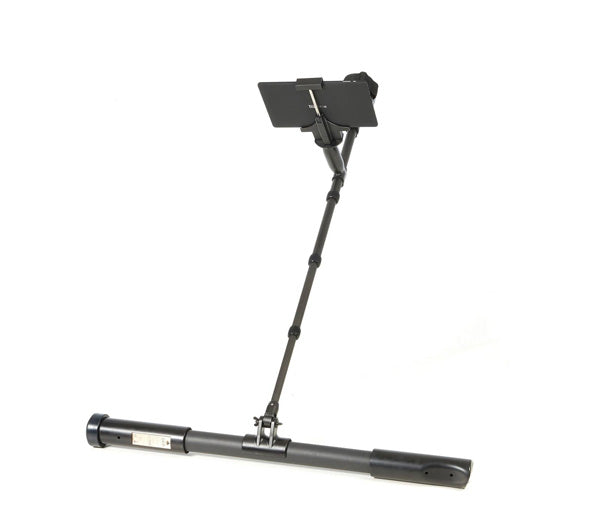

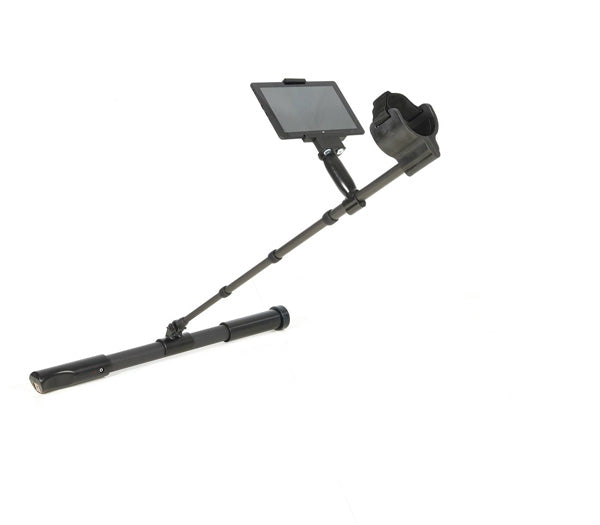

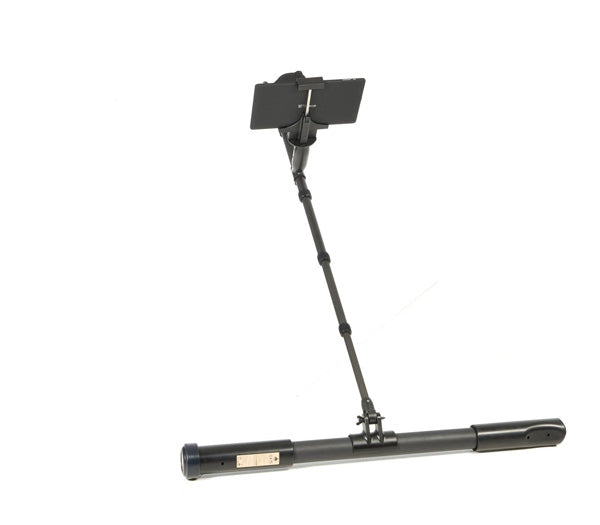

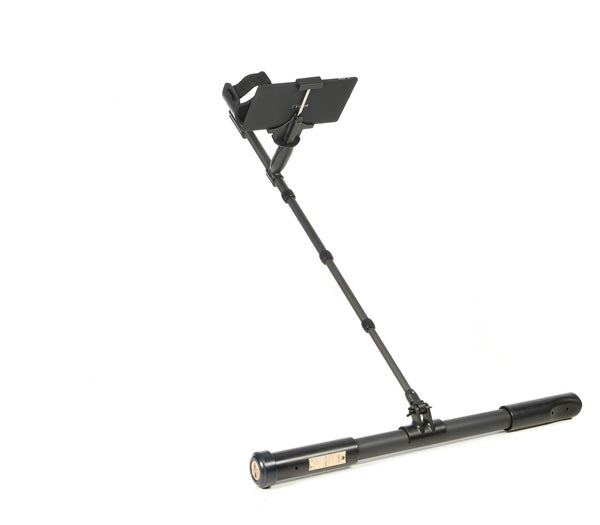

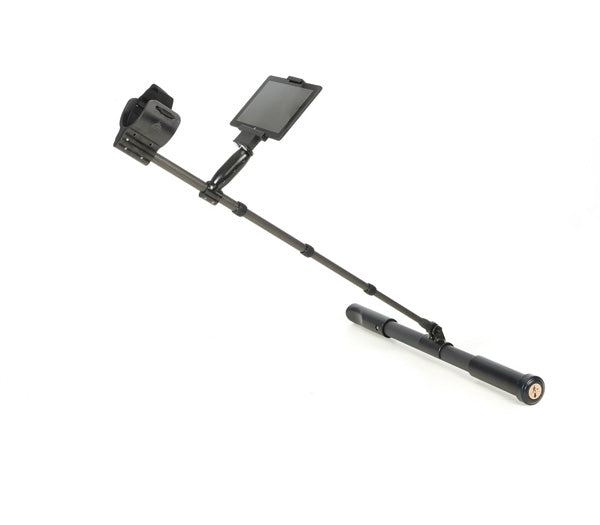

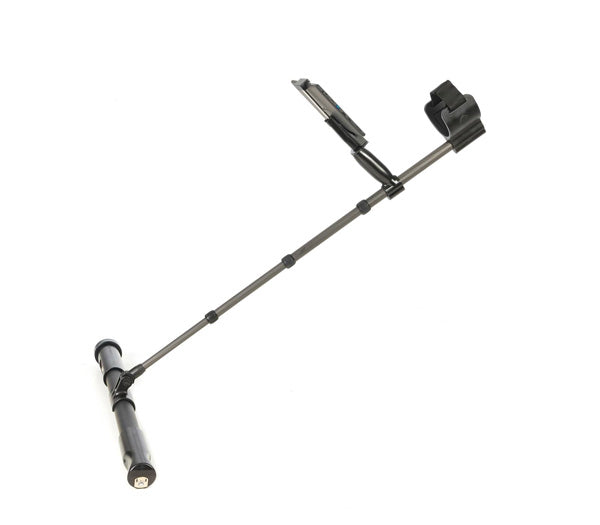

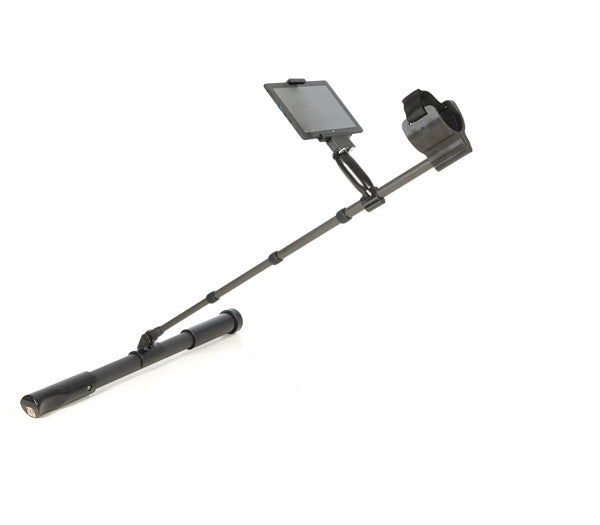

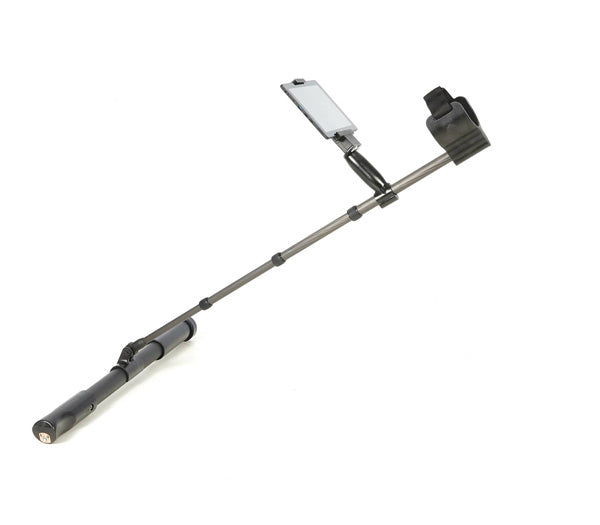

When using the detector in horizontal orientation, the probe is attached to the Telescopic Rod and the tablet is mounted above the handle. In this way, the detectorist is able to control the detector via software on the tablet very easily. Moreover, the horizontal orientation of the probe allows to record more values at once thanks to the integrated Multi-Sensor technology.
Discover Hidden Treasures and Burial Chambers
Fusion Professional Plus users are able to determine buried treasures, artifacts and further hidden objects before excavation. The saved 3D Ground Scan data can be analyzed in detail thanks to the detection software Visualizer 3D Studio: Detectorists are not only able to locate anomalies, but also to determine the size and depth of the detected underground structures.
Detect Metal Objects with the Inductive SRIS Search Coil
The SRIS search coil is used to locate shallow metallic objects close to the surface. The coil can be activated optionally while setting up the operating modes Live Sound, 3D Ground Scan and Live Scan (Ultrasound).
Pinpoint Targets During Excavation
The inductive SRIS search coil is also very useful to pinpoint objects while digging them up. It is easy to determine the general position of a buried object with Live Sound and 3D Ground Scan. In fact, when you start unearthing the detected objets, it can be hard to match the exact spots of hidden items. Thus, check the excavated material with activated SRIS search coil to find even small objects like rings, jewelry, brooches, bracelets, coins, buttons, badges and pins.
Archaeology
Treasure Hunting
Cavity Detection
Militaria Detection
Forensics
Agriculture
Public Services
Explosive Ordnance Disposal Services
OKM Search Services
| 1x Control Unit |
| 1x Telescopic Rod |
| 1x Pre-configured Windows Notebook |
| 1x Notebook Mount |
| 1x USB Flash Drive with OKM Visualizer 3D Studio Professional Edition |
| 1x Bluetooth Headphones incl. charging cable |
| 1x Charger with charging cable |
| 1x Travel Adapter Set |
| 1x Waterproof and shock-resistant Protector Case |
| 1x Quick Start Guide |
The actual scope of delivery is subject to technical developments or specific model configurations and can differ from depicted components.
Control Unit
- Dimensions (H x W x D): 950 mm, 65 / 80 mm
- Weight: approx. 1 kg
- Processor / Main CPU: Cortex M3, 32 MHz
- Processor / Slave CPU: Cortex M0, 24 MHz
- Sample rate: 1024 values / second
- Measurement resolution: 16 bit
- Operating temperature: –10°C – 60°C
- Storage temperature: –20°C – 70°C
- Audio: Bluetooth Headphones
- Waterproof: No
- Sensor technology / Coil technology: SCMI-15-D / SRIS-18K
- Operating time: approx. 12 hours (delivered power supply, full charged battery, 25°C)
- Air humidity: 5% – 75%
- Protection Type: IP40
- Input (for Charger): 19 V DC / 3.16 A
Data Transmission
- Technology: Bluetooth 5.1
- Frequency: 2.402 – 2.480 GHz
- Maximum Transfer Rate: 1 Mbps
- Maximum Transmitting Power: +8 dBm
- Maximum Range: approx. 10 m
Computer Minimum Requirements
- Interface (data transmission): USB 2.0
- Free disk space: minimum 250 MB
- Working memory (RAM): 2 GB
- Display: 1920 x 1080
- Processor: 1.2 GHz
- Graphics card: 1 GB RAM, OpenGL 3.3
- Operating system: Windows 10
The technical data are average values. Minor deviations are possible during operation.
