OKM eXp 4500 Pro Plus (2014-2019)

20 de mayo 2020
Este producto ha sido actualizado. Ver la versión actual del producto: OKM eXp 4500 Pro Plus
OKM eXp 4500 Pro Plus (2014-2019)
  • Todoterreno: El detector multifuncional de OKM para la detección del subsuelo - incluyendo todas las funcionalidades
  • Profundidad: Los clientes encontraron tesoros de hasta 20-25 metros de profundidad - ver nuestras referencias
  • Aplicaciones: caza del tesoro, prospección de oro natural, detección de túneles
  • Modos de detección: Ground Scan, Magnetometer, Pinpointer, Mineral Scan, Tunnel Scan
  • Objetos detectables: cofres del tesoro, cavidades, túneles

  • 24
  • 23
  • 22
  • 21
  • 20
  • 19
  • 18
  • 17
  • 16
  • 15
  • 14
  • 13
  • 12
  • 11
  • 10
  • 9
  • 8
  • 7
  • 6
  • 5
  • 4
  • 3
  • 2
  • 1

Introduction of ground scanner OKM eXp 4500:

YouTube Video

How to use the ground scanner eXp 4500:

YouTube Video
3D Visualization
3D Visualization
3D Ground Scan
3D Ground Scan
Exchangeable probes
Exchangeable probes
Height adjustment
Height adjustment
Internal memory
Internal memory
Live Sound
Live Sound
Mineral Scan
Mineral Scan
Multilingual operation
Multilingual operation
Rechargeable high-capacity battery
Rechargeable high-capacity battery

3D ground scanner for treasure hunters and gold seekers

Are you tired of finding only small objects near the surface? Do you want to detect the real buried treasures which lie deeper than a normal metal detector can detect? OKM introduces the multifunctional sub-surface imaging detector and ground scanner eXp 4500. Developed for treasure hunters as well as prospectors, the eXp 4500 allows to find those buried treasures.

Unlike other ground scanners and imaging detectors, the eXp 4500 is truly unique. Calling the eXp 4500 a simple detector is not justified, due to its multitude of built-in functions, the eXp 4500 can locate buried items, ancient artifacts, lost treasures and naturally occurring mineralization like gold and silver at depths well beyond that of a common metal detector.

Amazing treasure find in Greece with OKM eXp 4500
June 19, 2015
Descubrimiento fantástico en Grecia con el eXp 4500

Descubrimiento de tesoro en Grecia con OKM eXp 4500.

Leer más

Measurement data in high resolution

The measurement unit of the eXp 4500 includes a PC-module with which data is displayed immediately on the full color screen. Measured data is stored in the internal memory and can be transferred later to a computer. Transferring measured values to a computer allows the operator to evaluate and compare all stored data. In doing this the operator can determine depth, size and position of targets using the professional Visualizer 3D software.

Characteristics of the eXp 4500

  • lightweight portability
  • non-intrusive real time ground surveying
  • quick and easy set up and operation
  • live color coded surveys
  • allows for impromptu and fast surveys
  • immediate on-site interpretation of target area
  • measured values showing extreme depth of survey
  • measured values showing location of targets within surveyed area
  • highly sensitive and accurate metal detecting device

Applications of the eXp 4500 ground scanner

The eXp 4500 ground scanner is a high performance metal detecting device which is specially designed for the following applications:

  • Archaeological 3D surveys, metal detection, treasure hunting and gold prospection
  • pin pointer function to locating the exact position of buried treasures and artifacts
  • 3D imaging including size and depth
  • detecting gold and other items of great value
  • finding ancient artifacts, hidden treasures, gold, silver, bronze, hoards of coins, treasure deposits, pirate chests
  • tunnels, voids and cavern locating
  • mineral and natural gold prospecting

With several specialized detection antennas, the eXp 4500 ground scanner can also be used in highly mineralized areas for treasure hunting and prospecting.

Special Probes and Antennas

The functionality of the eXp 4500 metal detector is only one key point that makes it a unique treasure hunting unit. Every single probe and antenna is tuned and optimized for its own purpose and function. The following antennas are available:

  • GPR-Antenna (25cm, 50cm, 75cm, 100cm)
  • Antenna for tunnel detection

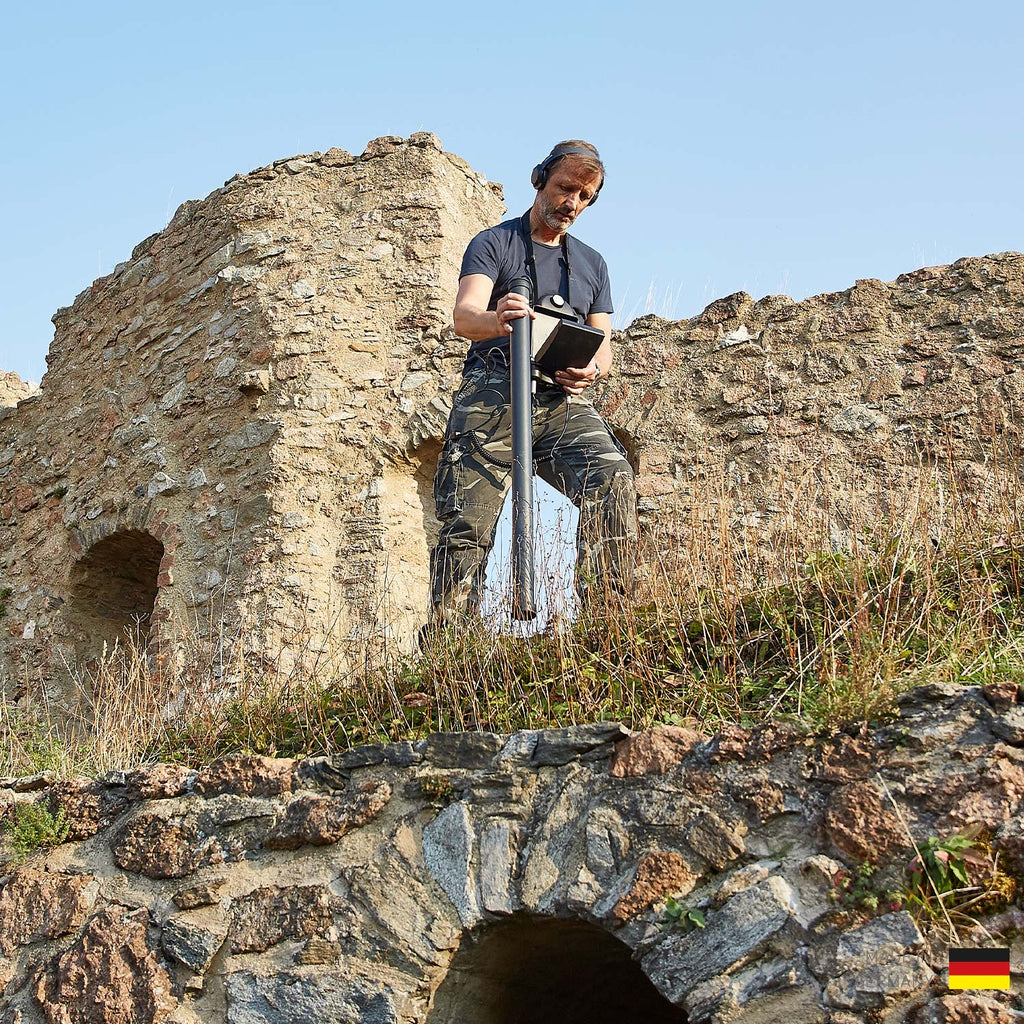

  • Super Sensor for high resolution ground scans, pin pointing and mineral detection

Operating modes of the eXp 4500 ground scanner and metal detector

Hidden artifacts are of different sizes and made from different materials. So the treasure hunter needs different operating modes and locating methods to find all of those hidden treasures at various depths under the ground surface. The eXp 4500 ground scanner is capable of the following operating modes:

  • Ground Scan is ideal for treasure hunters and archaeologists looking for underground artifacts, treasures as well as historical and archaeological items
  • Mineral Scan has been integrated for gold prospectors, seekers and miners, who are looking for natural gold and minerals
  • Tunnel Scan is a specialized mode to detect underground voids, tunnels, cavities and hollow spaces
  • Pinpointer assists you in locating the correct position of detected items
  • Magnetometer is helpful to locate ferrous metals like iron and steel
Cavity Detection
Cavity Detection
Explosive Ordnance Disposal Services
Explosive Ordnance Disposal Services
Militaria Detection
Militaria Detection
Natural Gold Prospection
Natural Gold Prospection
Treasure Hunting
Treasure Hunting
OKM Search Services
OKM Search Services

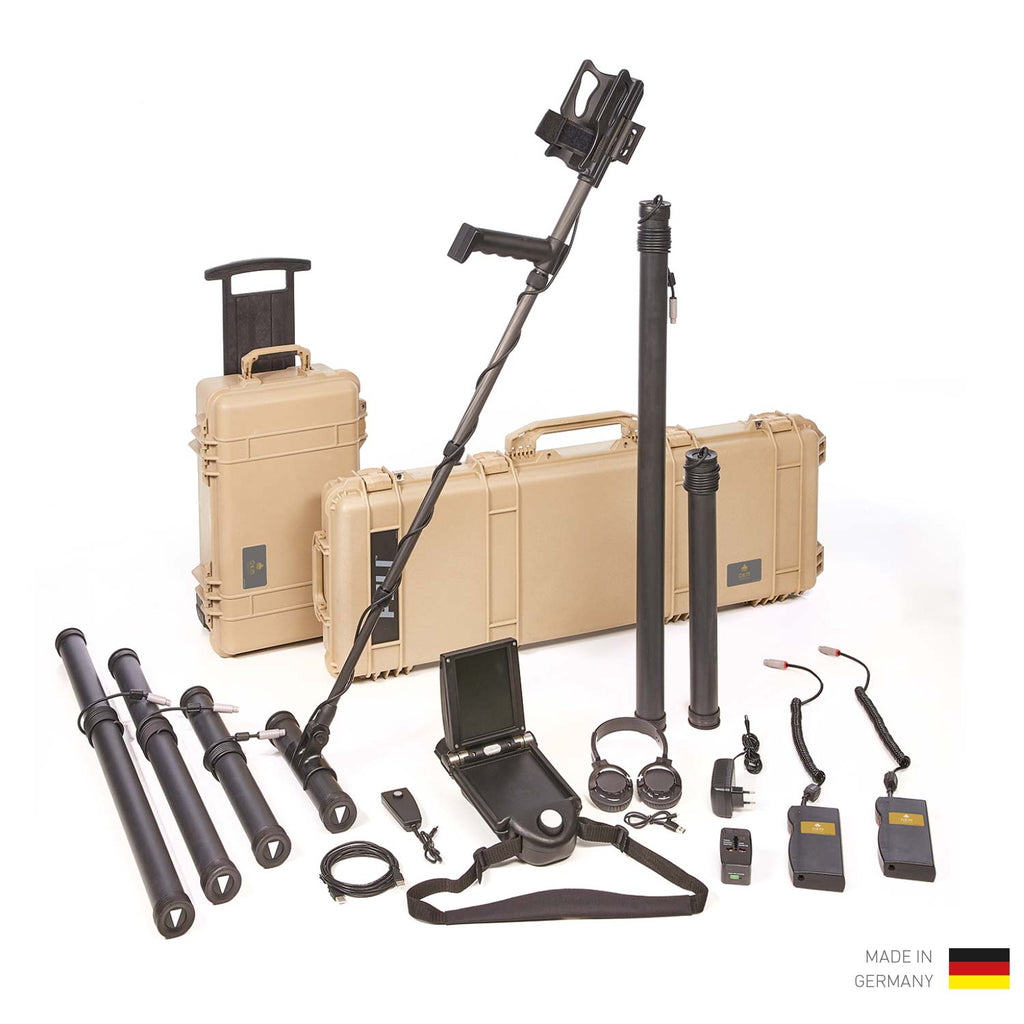

1x Control unit
1x Super Sensor
1x GPR-antenna (100 cm)
1x GPR-antenna (25 cm)
1x GPR-antenna (50 cm)
1x GPR-antenna (75 cm)
1x Sensor for tunnel detection
1x Telescopic rod assembly
1x 3D software ("Visualizer 3D") with data cable
2x Waterproof and shock resistant Pelican case
1x Bluetooth headphones
1x Joystick
2x Power Pack with charger and travel adapter
1x User’s manual

Control unit

  • Dimensions (H x W x D): 220 x 160 x 295 mm
  • Weight: approx. 1350 g
  • Input voltage (max.): 12 – 14.4 V DC, 22 W maximum
  • Processor / Main CPU: 800 MHz, INTEL i586-compatible
  • Data memory: 256 MB
  • Operating temperature: 0°C – 70°C
  • Storage temperature: –20°C – 60°C
  • Waterproof: No
  • Operating time: approx. 3 hours (delivered power supply full charged, 25°C)
  • Air humidity: 5% – 75%
  • Feedback: acoustic, visual
  • Protection Type: IP40
  • Working memory: 256 MB RAM

Data transmission

  • Technology: USB
  • Maximum Transfer Rate: 115200 Baud

Computer minimum requirements

  • CD-ROM drive: minimum 4x
  • Interface (Data transmission): USB
  • Free disk space: minimum 50 MB
  • Working memory (RAM): minimum 256 MB
  • Graphic card: minimum 128 MB, OpenGL-compatible
  • Processor: minimum 1.2 GHz
  • Operating system: Windows XP, Windows Vista, Windows 7, Windows 8, Windows 10

The technical data are average values. Minor deviations are possible during operation.

This product has been updated. View the current product version: OKM eXp 4500 Pro Plus
