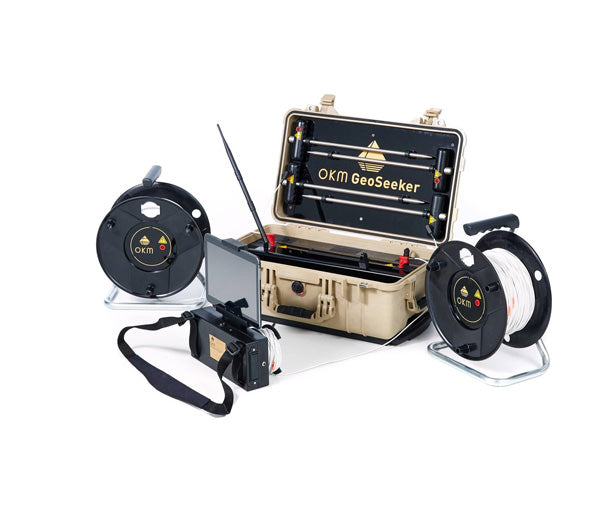

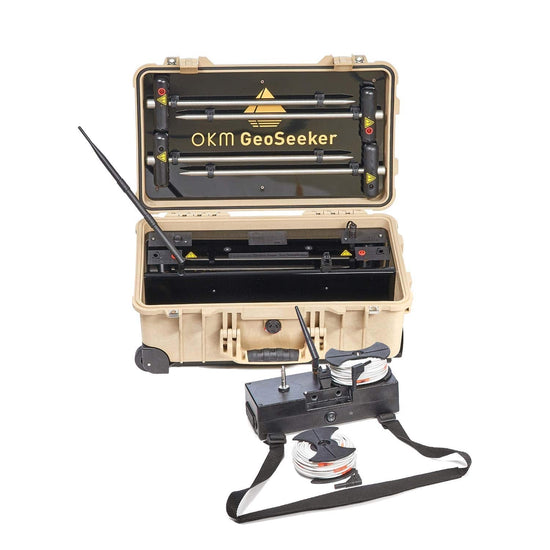

OKM GeoSeeker water detector
OKM GeoSeeker water detector

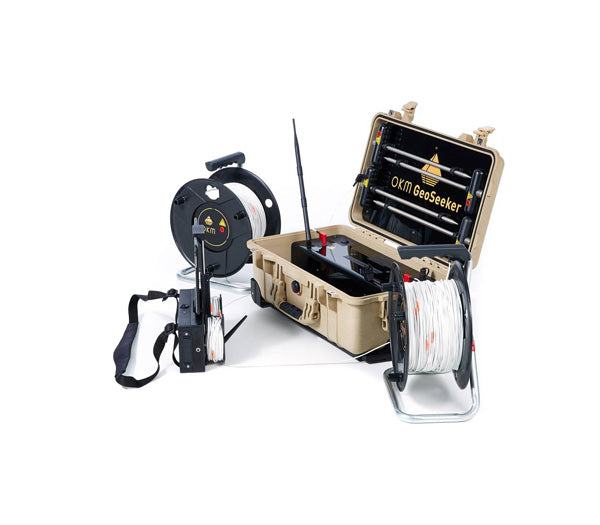

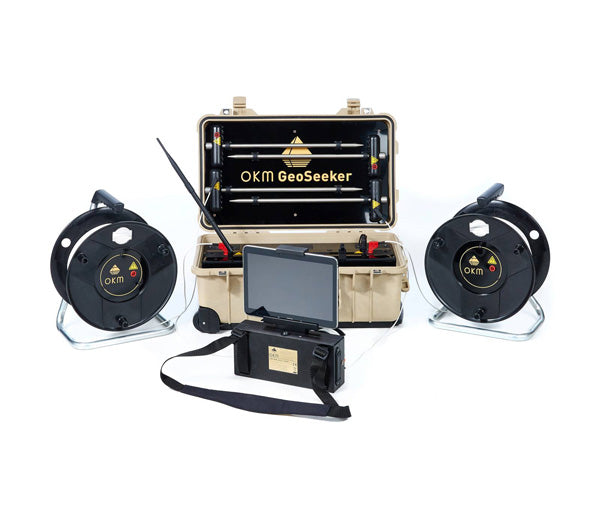

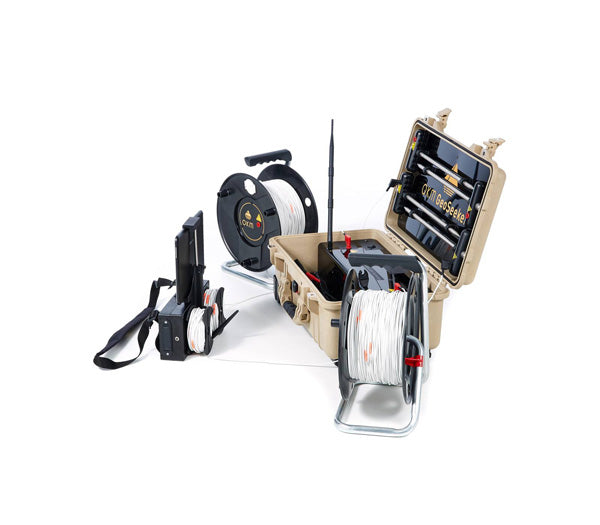

OKM GeoSeeker water detector delivery scope

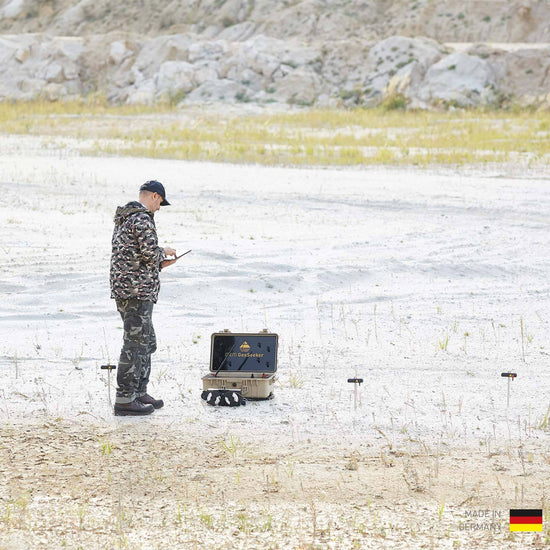

OKM GeoSeeker water detector in use
OKM GeoSeeker water detector in use
OKM GeoSeeker water detector in use
OKM GeoSeeker water detector in use

OKM GeoSeeker

€8.446,00 excl. IVA
€9.797,36 iva del 16%*
    • Detector de agua y cavidades: Determina la resistencia del suelo hasta una profundidad de 250 metros y visualiza los valores medidos en 3D
    • Profundidad: Los clientes encontraron agua hasta 250 metros - ver nuestras referencias
    • Aplicaciones: detección de agua, detección de cavidades, ingeniería geotécnica
    • Modos de detección: exploración geoeléctrica
    • Estructuras detectables: depósitos de agua, niveles de grava que contienen agua, cavidades
    • 24
    • 23
    • 22
    • 21
    • 20
    • 19
    • 18
    • 17
    • 16
    • 15
    • 14
    • 13
    • 12
    • 11
    • 10
    • 9
    • 8
    • 7
    • 6
    • 5
    • 4
    • 3
    • 2
    • 1

    Introduction of water detector GeoSeeker:

    YouTube Video
    3D Visualization
    3D Visualization
    Color display / Touchscreen
    Color display / Touchscreen
    Geoelectrical measuring procedure
    Geoelectrical measuring procedure
    Internal memory
    Internal memory
    Multilingual operation
    Multilingual operation
    Rechargeable high-capacity battery
    Rechargeable high-capacity battery
    Wireless technology
    Wireless technology

    Water detector and cavity detector up to 250 meters (820 ft) depth

    Are you looking for underground water resources or hidden cavities up to depths of 250 meters (820 ft)? The GeoSeeker is a professional geoelectrical water detector and cavity detector that measures the ground resistivity and visualizes its scan data in incredible 3D graphics. It is a very mobile and easy to operate geoelectrical detector designed and manufactured in Germany.

    Water detection in Africa
    July 04, 2018
    Detección de agua en África

    GeoSeeker de OKM se utiliza con éxito para detectar agua hasta profundidades de 250 mts en África. El equipo de Mali utiliza el detector de agua con fines humanitarios.

    Leer más

    The GeoSeeker utilizes a geoelectrical measurement procedure based on Schlumberger to read the apparent resistivity of the ground. Based on that ground resistivity the detector is capable to locate underground water deposits, water-bearing gravel and groundwater level as well as cavities like caves, tunnels, chambers and the like. Thus, the geophysical detector can be deployed as water finder or cavity detector at the same time.



    GeoSeeker Scan Modes

    GeoSeeker hardware components are completely controlled by a modern Android Tablet PC. All commands and measurement results are transferred wireless via Wi-Fi. Using the pre-installed software application you simply select one of three supported scan modes:



    • Active Scan (Accurate)
      While using this scan mode the GeoSeeker utilizes two electrodes to inject electrical power into the underground soil. Two additional electrodes are measuring the potential difference (fall of voltage) at specific scan points to calculate the final resistivity value. This mode is used to detect underground water deposits, hidden caves or even impervious layers and barriers within the underground soil. In active scans you will be able to define a specific depth range in that you are going to conduct your measurement. So you will define a starting and ending depth between 5 meters (16 feet) and 250 meters (820 feet).
    • Active Scan (Quick)
      This scan mode is a quick version of the accurate scan. It is also injecting electrical current into the underground and measuring the potential difference (fall of voltage) to calculate the resistivity of the ground.
    • Passive Scan
      While using this scan mode the GeoSeeker only utilizes two electrodes to read the natural occurring voltage of the underground (no electrical power is injected into the underground). This mode is used to detect underground flowing water only.



    GeoSeeker Software

    The GeoSeeker’s software application is providing simple step-by-step instructions to assist you in completing the measurement. You simply follow these pictured instructions until your measurement has been finished. After completing the measurement a graphical 3d representation of the measure values is created and displayed on the screen of your Tablet PC. Some color adjustment options are provided to optimize the graphical 3d visualization of your underground water deposits, water-bearing gravel and groundwater level (shown in bluish colors) as well as cavities, caves, tunnels, chambers or impervious layers (shown in reddish colors).



    GeoSeeker Transportation

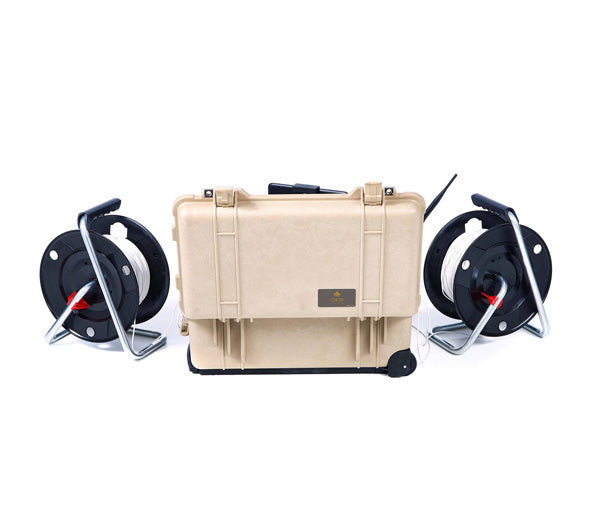

    The GeoSeeker hardware is integrated in a waterproof and shock-resistance Peli case. Thus, your geoelectrical equipment is well packed and always ready for transportation.

    Agriculture
    Agriculture
    Archaeology
    Archaeology
    Cavity Detection
    Cavity Detection
    Geotechnical Engineering
    Geotechnical Engineering
    Water Detection / Well Building
    Water Detection / Well Building
    OKM Search Services
    OKM Search Services
    1x Controller
    1x Android Tablet PC
    1x Tablet PC mount
    1x Waterproof and shock resistant Pelican case
    8x AA battery 1.5 V
    1x Power Pack with charger and travel adapter
    1x Power Box
    1x Charger for controller
    1x Charger for Power Box
    2x Power cable drum (Ø 290 mm)
    2x Voltage cable drum (Ø 120 mm)
    4x Electrode
    2x Connecting Cable (2 m)
    1x User’s manual

    Voltage Cable Drums (Ø 120 mm)

    • Dimensions (H x W x D): 360 x 290 x 200 mm
    • Weight: 6.5 kg
    • Cable length: 255 m
    • Markers: 15

    Power Cable Drums (Ø 290 mm)

    • Dimensions (H x W x D): 120 x 120 x 45 mm
    • Weight: 0.65 kg
    • Cable length: 26 m
    • Markers: 25

    Controller (Receiving Unit)

    • Dimensions (H x W x D): 130 x 270 x 110 mm
    • Weight: 0.6 kg / 2.1 kg (with mounted cable reers and batteries)
    • Sample rate: 4096 Hz (64 times oversampling of a 512 samples mean value)
    • Operating time: min. 16 hours (charged batteries)
    • Charging Time: 3 h / max. 5 h (empty batteries)
    • CPU: 80 MHz Cortex M3
    • ADC: 16 bit
    • Communication with Tablet PC: WLAN-Accesspoint, 2.4 GHz band, channel 6, WPA2
    • Communication with Power Box: 2.4 GHz band, on-demand, proprietary
    • Effective Range: –1400 to +1400 mV
    • Measurement Period per Scan Point: min. 16 seconds
    • Power Supply (8 AA batteries): 8 – 14 V DC
    • Input (for Charger): 12 V DC / 1.5 A
    • Input Resistance (static): approx. 12 MΩ

    Power Box (Sending Unit)

    • Dimensions (H x W x D): 230 x 550 x 360 mm
    • Weight: 15.8 kg / 18 kg (with mounted Electrodes)
    • Operating time: 100 h (min. Power) / 40 h (average Power) / 8 h (max. Power)
    • Charging Time: max. 8 hours
    • Output: max. 390 V / 0.5 A / 20 W
    • Communication with Controller: 2.4 GHz band, on-demand, proprietary
    • Input (for Charger): 24 V DC / 2 A
    • Internal Power Supply: Lead Acid Battery (2 x 12 V, 10 Ah)

    Electrodes

    • Dimensions (H x W x D): 440 x 120 x 35 mm
    • Weight: 0.52 kg

    The technical data are average values. Minor deviations are possible during operation.
