GeoSeeker Mini

Water detector and cavity detector up to 100 meters (328 ft) depth

Like his big brother GeoSeeker, the GeoSeeker Mini utilizes a geoelectrical measurement procedure based on Schlumberger. The water detector – that can also be used to detect underground cavities – determines the soil resistivity. Based on that ground resistance the detector is able to detect underground water resources like fresh water, drinking water, water-bearing gravel and groundwater level.

  • Easy touchscreen operation
    After selection of measurement depth and amount of scanning points, simple graphical instructions guide throught the measuring procedure.
  • Geoelectrical measurement
    Depending on the selected depth penetration, you can detect underground water deposits and cavities up to 100 meters (328 ft).
  • Very easy data evaluation
    The results of the measurement are visualized in a 2D diagram or in more simple representations using unambiguous pictures.

Features

  • Multilingual operation
    Multilingual operation
  • Color display / Touchscreen
    Color display / Touchscreen
  • Rechargeable high-capacity battery
    Rechargeable high-capacity battery

Topics

  • Cavity Detection
    Cavity Detection

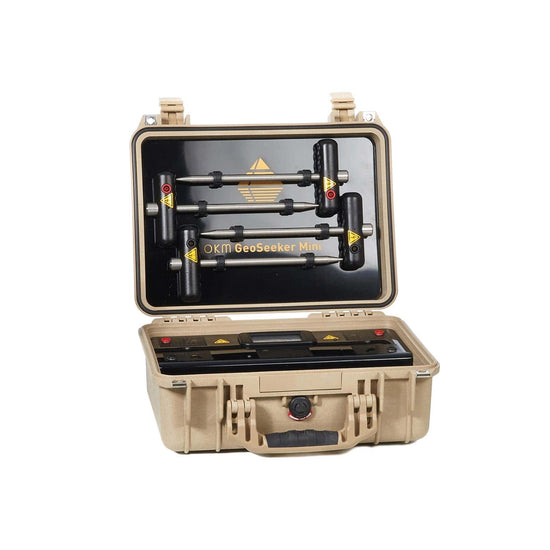

Control unit

  • Dimensions (H x W x D): 410 x 340 x 180 mm
  • Weight: 4.5 kg
  • Input voltage (max.): 11 – 13 V DC / 30 W
  • Display: 3.5” Resistive touch, 480 x 320 Pixel
  • Display CPU: Cortex M3, 32 MHz, 128 KB RAM
  • Data memory: 4 GB
  • Sample rate: 4096 Hz (64-fold oversampling of 512 values)
  • Operating time: approx. 6 – 8 h
  • CPU: 80 MHz Cortex M3
  • ADC: 16 bit
  • Effective Range: (differential) –1400 to +1400 mV
  • Measurement Period per Scan Point: min. 16 s
  • Output: 320 V / 0.4 A
  • Input Resistance (static): approx. 12 MΩ

Power Cable Drums (Ø 290 mm)

  • Dimensions (H x W x D): 360 x 290 x 200 mm
  • Weight: 3.6 kg
  • Cable length: 100 m
  • Markers: 10

Electrodes

  • Dimensions (H x W x D): 270 x 120 x 35 mm
  • Weight: 0.4 kg

Voltage Cable

  • Cable length: 10 m
  • Markers: 10
The technical data are average values. Minor deviations are possible during operation.
  • GeoSeeker Mini Manual EN

    • File name: GeoSeekerMini_Manual_EN.pdf
    • File size: 3.15 MB
    Download

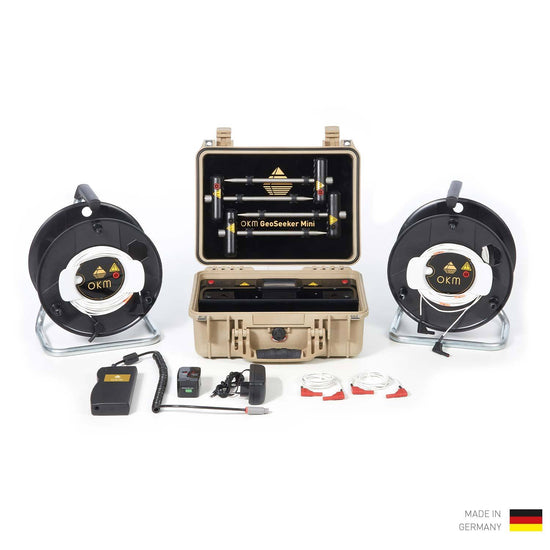

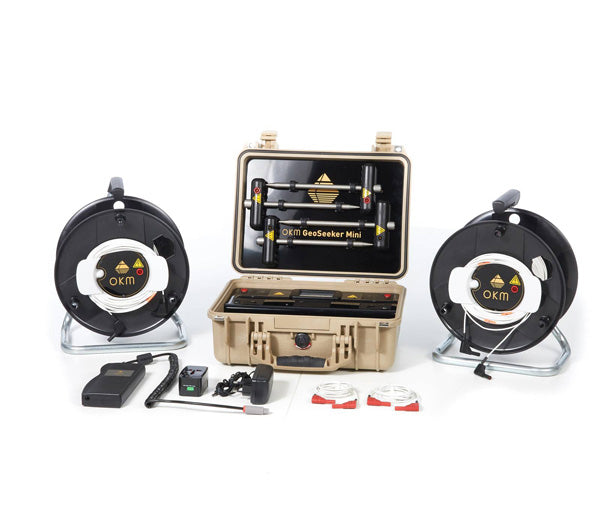

Below you will find the complete scope of delivery including all optionally available accessories.
n ≙ n times included, ≙ not included, ≙ optional epquipment
User’s manual1
Control unit with touchscreen1
Electrode4
Power Pack with charger and travel adapter1
Voltage Cable (10 m)2
Power cable drum (Ø 290 mm)2
Connecting Cable (2 m)2
